Eastron ESCT-TU/TA Series is mV/ mA output split core current sensor designed to facilitate the installations in new or already existing net works.
They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output. It can save time and the installation costs.
- Primary input 5A~600A
- Secondary output: 333mV/ 100mV/100mA/40mA, etc.
- Split core, self-locking, easy installation
- Safe Operation

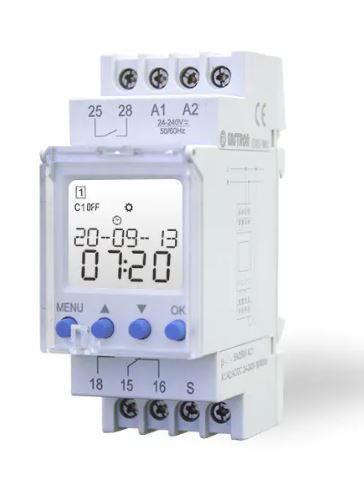

ESRD-TMS1 is 1C/O+1NO Contacts Digital Multifunction Time Relay with backlit for easy reading. It is used for the time control of industrial and domestic control systems.
It has 24 functions operating modes. With 4 buttons, easy to set and operate. It provides 1C/O+1NO Contacts, controlled by different operating modes.
- Microcontroller based
- LCD display for functions, set delay and operating time 24 functions
- Time range:0s-99h59min59sec.
- AC/DC 24-240V supply voltage
- 1C/O+1NO contacts
- Backlighted LCD display
- Easy setting by keys
- 2 module Din-rail mounting
